Device settings

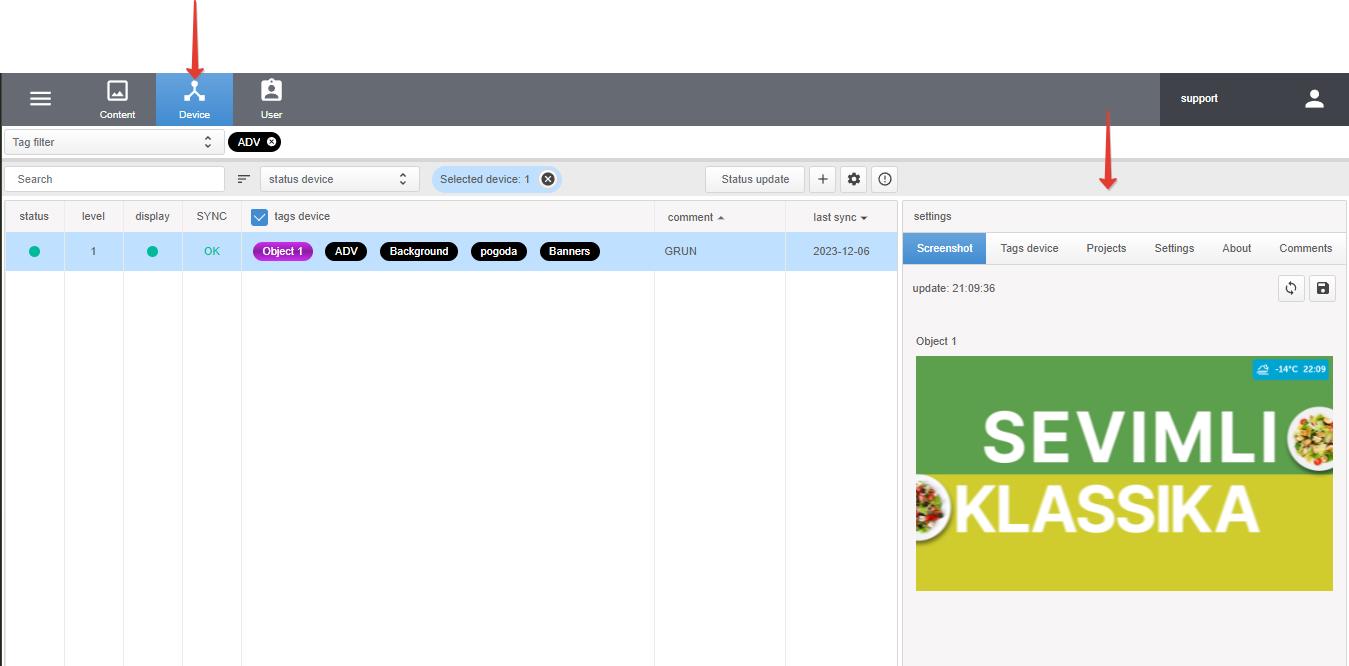

Go to the Device section and select your device.
All device settings are carried out in the Settings window.

Section Screenshot.

Screenshot from the playback device.

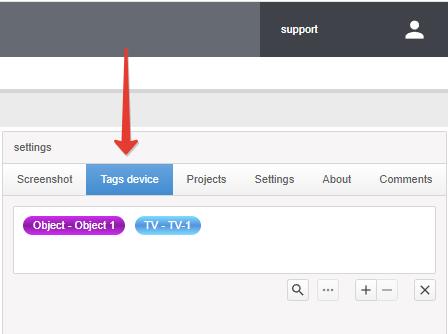

Section Tags device.

This section specifies tags that will help you publish targeted content to both each device and groups of devices.

!Important! The use of tags in the Tags device section is only an additional tool for targeted publishing. The use of template zone tags in the Projects section is mandatory!

Let’s give an example on one device.
For the template zone, the Advertising tag is specified, and in the Tags device section, a tag is specified, for example: Display-1.
If you specify only the Display-1 device tag for a file published to this device, the file will not be published. The reason is that the template zone tag is not specified for it. It would be correct to indicate only the zone tag – Advertising.

Let’s give an example on several devices.
All devices have a template zone tag Advertising, and in the Tags device section, each device is assigned an individual tag: Display-1, Display-2, Display-3 and so on. If for a published file you specify only device tags Display-1,2,3, etc., then the file will not be published. Reason: the template zone tag was not specified. If you specify only the zone tag – Advertising, then the file will be published on all devices. And if you additionally specify device tags for the zone tag – Display-1, Display-2, then the file will be published only to these devices.

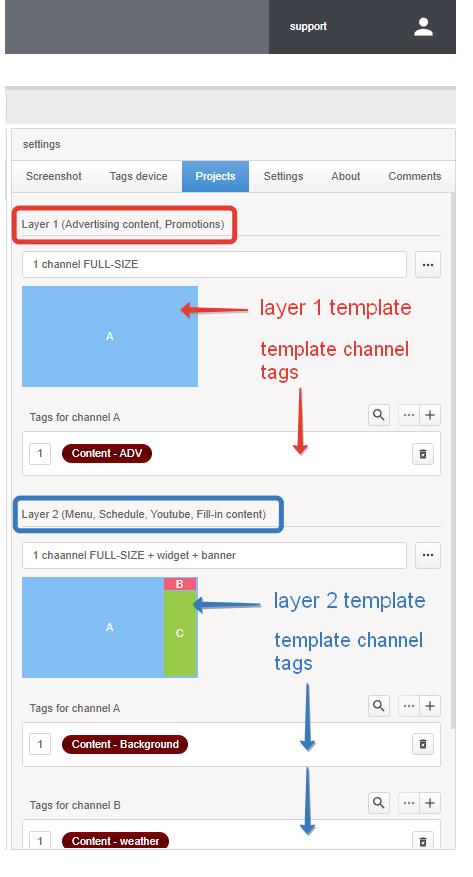

Section Projects.

DS-PRO provides the ability to play content in two independent layers. Each layer can have an individual template and a set of tags. The difference between layers is the priority of displaying content published in them – content in layer 1 (Layer 1) will be played, interrupting the display of content in layer 2 (Layer 2). As a comparison, we can cite the display scheme of central television – films or programs are interrupted to show advertising. If there is no such task, you can use any of the layers, for example Layer 1.

!To complete the settings, you need to select a template in any of the layers and specify at least one tag for its zones.

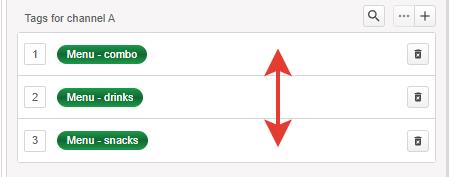

For each zone of the template, several tags can be used, for example Advertising and Announcements. In this case, the files will be played in groups and according to the order of the zone tag: First, all files with the Advertising tag will be played, and then all files with the Advertising tag, and so on, in cyclic order. To change the order of zone tags, hold down the tag with the mouse and place it in the desired direction.

*To apply the changes, click the Update button.

!If the button is not active, check whether the tag is specified for the template zones.

Section Settings.

This section contains basic device settings.

oreint
Selecting the player orientation on the playback device. This option only works for displaying graphics and HTML layouts. To display video content, you must additionally rotate the playback device itself.

time-zone
Select the time zone of the geolocation where the playback device is used.

sleep ON
The time when the device sleep mode is turned on (the time zone of the device is taken into account). When using the player on TV (Android), smartphones and tablets, when sleep mode is turned on, the display will display a black background. When using the player on a TV-box, the TV or monitor connected to it also “falls asleep” (only with an HDMI connection).

sleep OFF
Time to wake up from sleep mode (the time zone of the device is taken into account).

publish start
Selecting a publishing mode. NOW – publication is performed immediately after pressing the PUBLISH button in the display properties. TIME – publication will start according to the specified time.

Delete Device
Removing a DS-PRO device or system. When you delete a device, content previously published on it is also deleted.

Section About.

Help information about the device.

Section Comments.

Section for comments about the device.
